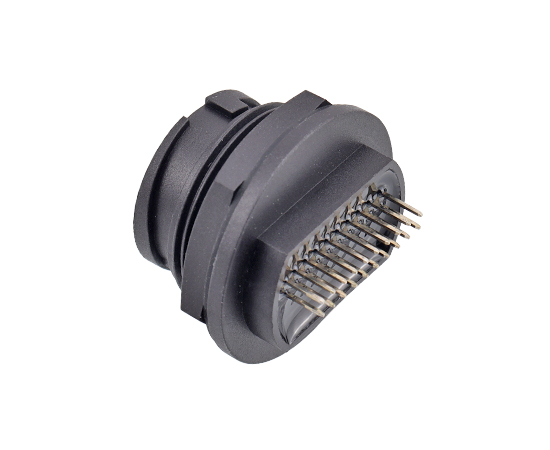

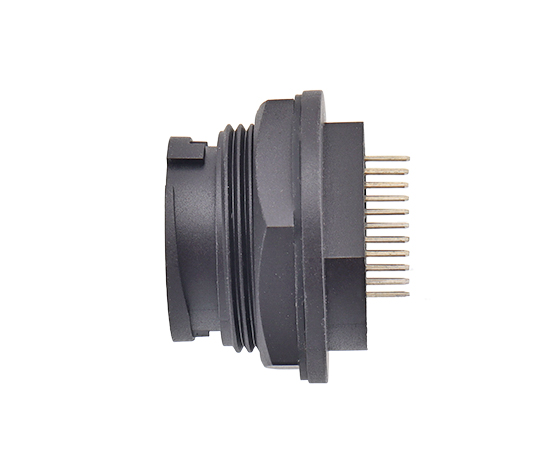

E16 EHDMI Female Back Mount PCB Receptacle(Bayonet)

E16 EHDMI Female Back Mount PCB Receptacle(Bayonet)

Plastic waterproof connector：HDMI series

Structure type: Rear mounted socket

Gender: Female to Female back mount PCB receptacle

Coupling: Bayonet(B)

Specifications：HDMI 4K、HDMI 8K

Certification: CE、RoHS

Standard:
HDMI 2K
Merchant Code:
E16B-FH2-PPF

INQUIRY

DOWNLOAD

Product information

PRODUCT PARAMETERS

Plastic Material:	Thermoplastic plastic PA66, flame retardand grade: V-0
Metal Material:	Copper gold-plated
Coupling:	Bayonet(B)
Termination way:	Solder、Welding plate
Insulation resistance：	2000 mΩ
Durability:	≥500(Cycles)
Contact resistance：	30 mΩ
Rated current：	250~600V AC/DC
Applicable temperature:	-40℃ ~ +105℃
Specification:	1"-20UNS
Waterproof grade:	IP67

Electrical diagram

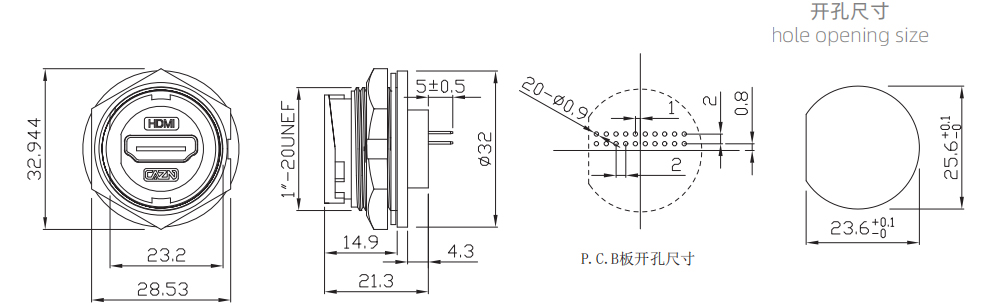

DIMENSION DRAWING

Product Ordering

Product Name	Standards	P/N	3D Download	2D Download
HDMI Female to Female Back Mount PCB Receptacle(Bayonet)	HDMI 2K	E16B-FH2-PPF
