Back Mount Receptacle

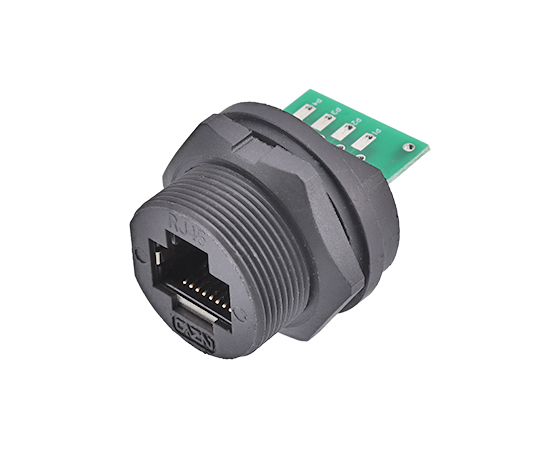

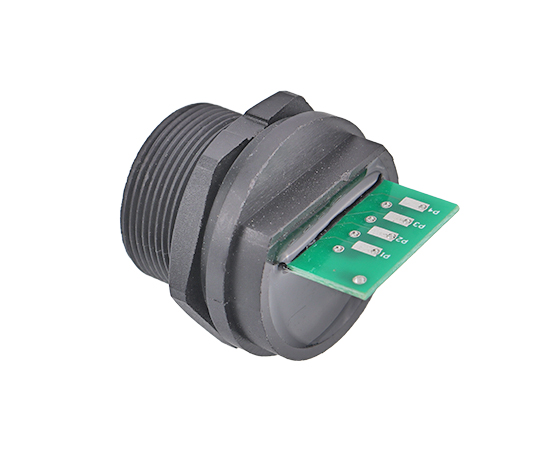

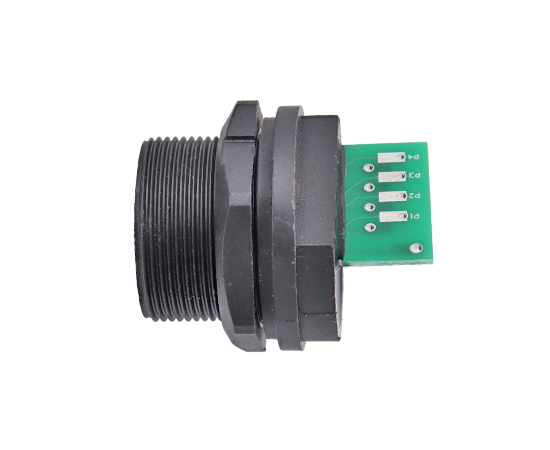

RJ45 Female Back Mount Receptacle with wire(Threaded) (External welding plate)
<>

Plastic waterproof connector: E-RJ45 series

Structure type: RJ45 Back Mount Receptacle with wire

Pin type: Male

Coupling: Threaded(T)

Standard: CAT5e, CAT6a

Certification: CE、RoHS

  • Standard:
  • Merchant Code:

    E13T-FR6-PWF
Product information
PRODUCT PARAMETERS
Shell material:Thermoplastic plastic PA66, flame retardand grade: V-0
Contact material:Phosphorus copper gold-plated
Sealing material:Epoxy resin/Rubber
Conform standard:CAT5e, CAT6a
Durability:≥750 Cycles
Contact impedance:≤5mΩ
Wiring range:5.5mm~7.0mm
Waterproof grade:IP67
Applicable temperature: -30℃ ~ +105℃
Electrical diagram

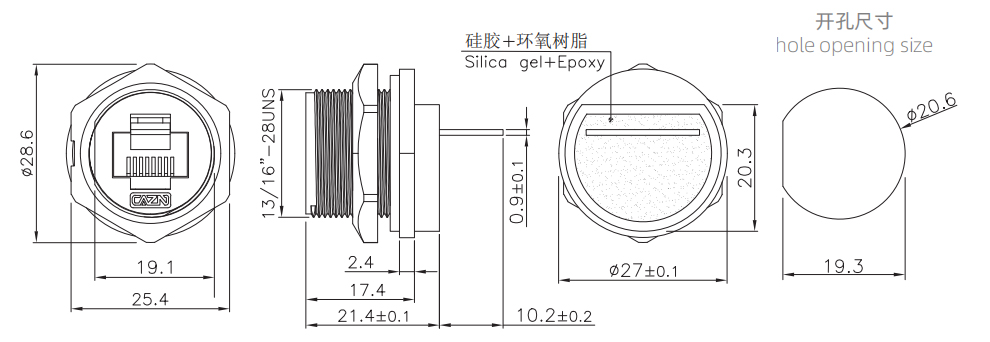

DIMENSION DRAWING

Product Ordering

Product NameSpecificationP/N 3D Download 2D Download
RJ45 Back Mount Receptacle with wire6AE13T-FR6-PWF

*If need to order other collocation or wire, please consult customer service
