Home / Products / E Waterproof Connector / E-HDMI / Back Mount FFC Type / E16 HDMI Female Back Mount to R/A HDMI Male FFC Type(Bayonet)

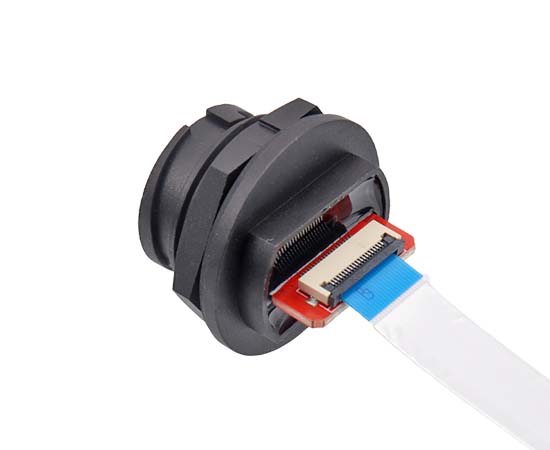

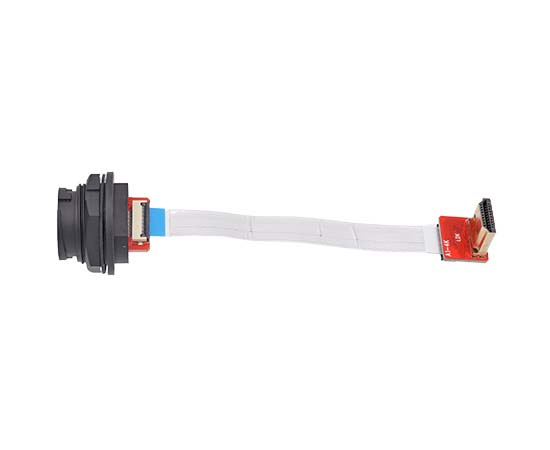

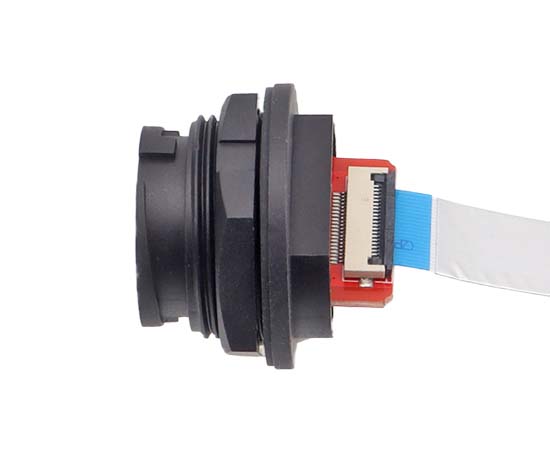

Back Mount FFC Type
Plastic waterproof connector：HDMI series
Structure type: Back Mount Socket
Gender: Female Back mount to R/A HDMI Male FFC Type
Coupling: Bayonet(B)
Specifications：HDMI 4K、HDMI 8K
Shielded: Yes/NO
Certification: CE、RoHS
Product information
PRODUCT PARAMETERS
| Plastic Material: | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Metal Material: | Copper gold-plated |
| Coupling: | Bayonet(B) |
| Termination way: | Solder、Welding plate |
| Contact resistance： | 30 mΩ |
| Durability: | ≥500(Cycles) |
| Insulation resistance： | 2000mΩ |
| Rated current： | 250~600V AC/DC |
| Applicable temperature: | -40℃ ~ +105℃ |
| Specification: | 1"-20UNS |
| Waterproof grade: | IP67 |
Electrical diagram

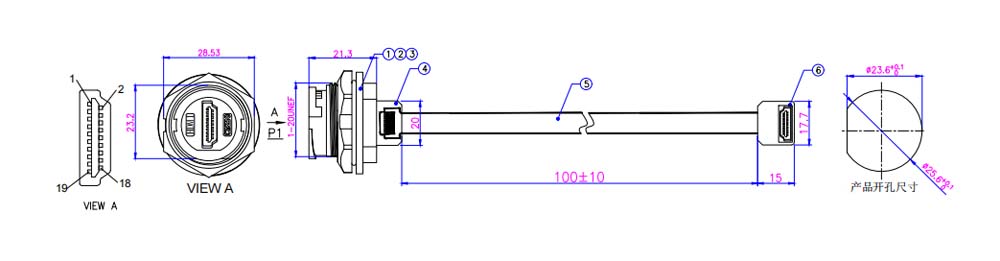

DIMENSION DRAWING
Product Ordering
| Product Name | Standards | Wire Length | P/N | 3D Download | 2D Download |
HDMI female back mount to R/A HDMI Male FPC Type(Bayonet) | HDMI 4K | 0.1M | E16B-FH4-PRF/MH4-NRD-0.1FFC | ||
HDMI female back mount to R/A HDMI Male FPC Type(Bayonet) | HDMI 4K | 0.2M | E16B-FH4-PRF/MH4-NRD-0.2FFC |
*If need to order other collocation or wire, please consult customer service
