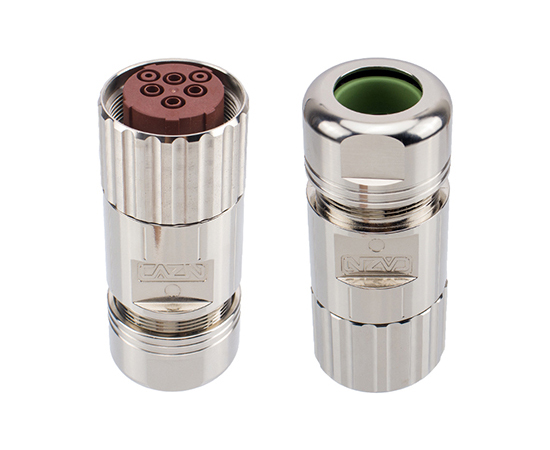

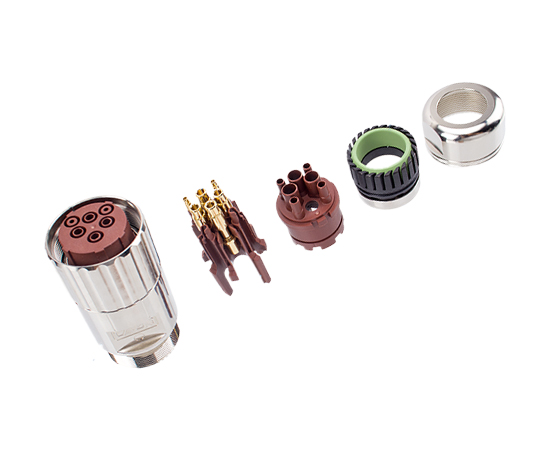

European standard connector: M40 Series

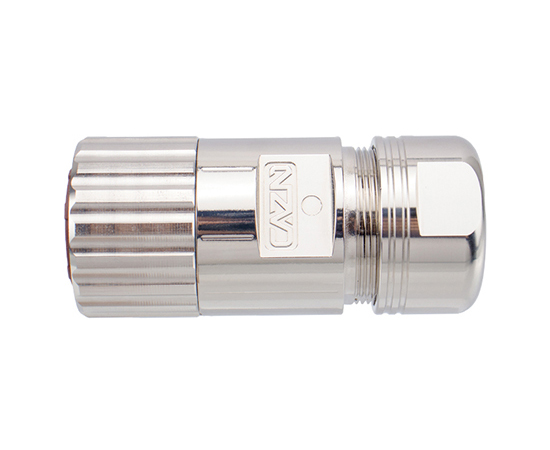

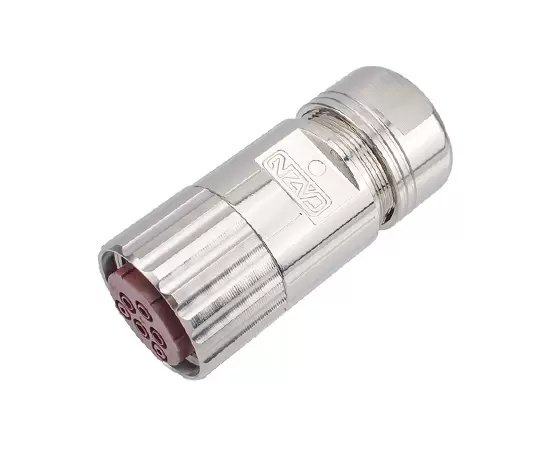

Structure type: Straight Metal Assembled Plug
Connection method: Crimp
Pin type: Female
Contacts number: 6, 8pins
Shielded: Yes
Certification: CE, RoHS, UL
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material： | PA66 UL 94-V0 |
| Sealing material： | Rubber |
| Contact material： | Brass gold-plated |
| Connection： | Crimp |
| Wiring range： | 9~14mm |
| Contact impedance： | ≤1mΩ |
| Durability: | ≥50cycles |
| Applicable temperature： | -40℃ ~ +125℃ |
M40 ELECTRICAL PARAMETERS
Electrical diagram
DIMENSION DRAWING
M40 PIN PARAMETER TABLE
M40 WIRE DEFINITION
Product Ordering
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
