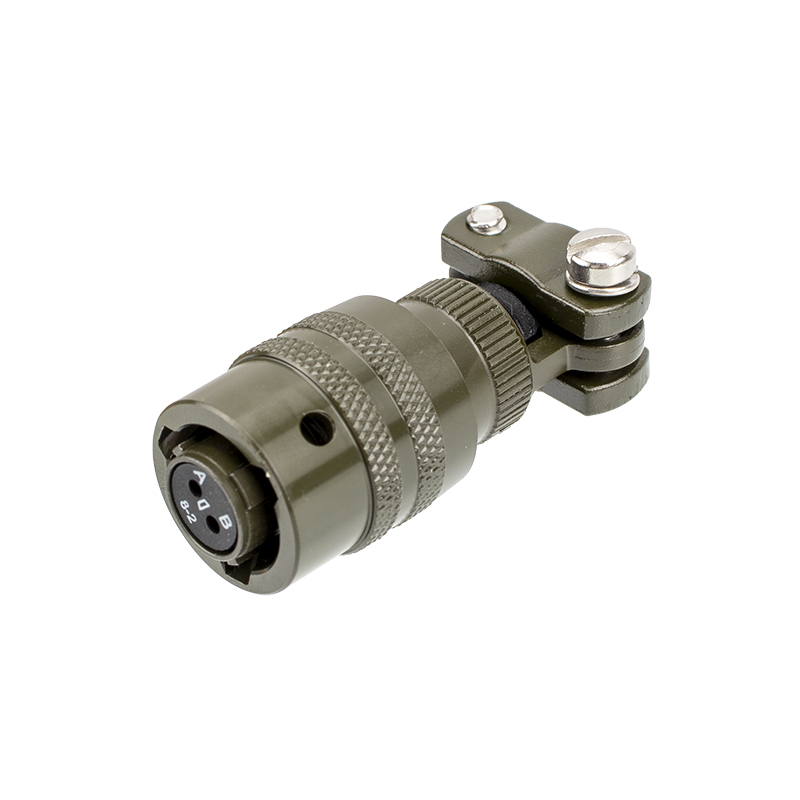

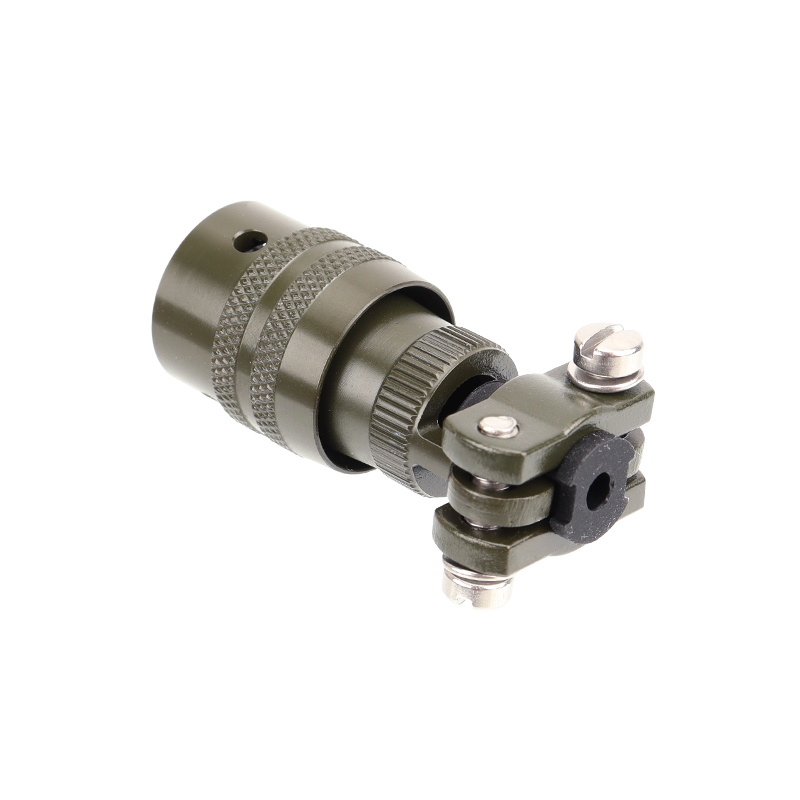

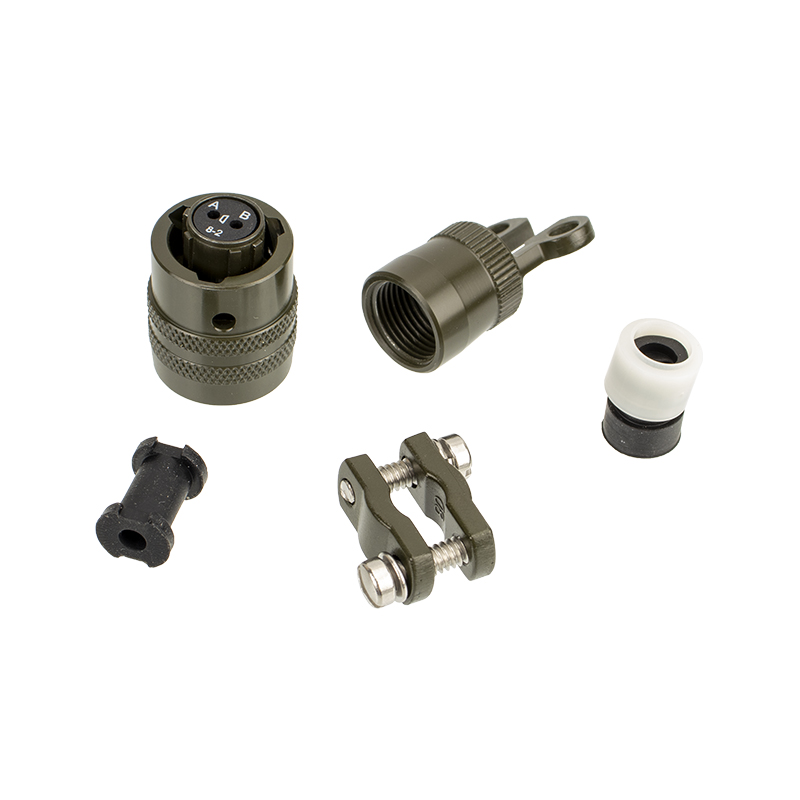

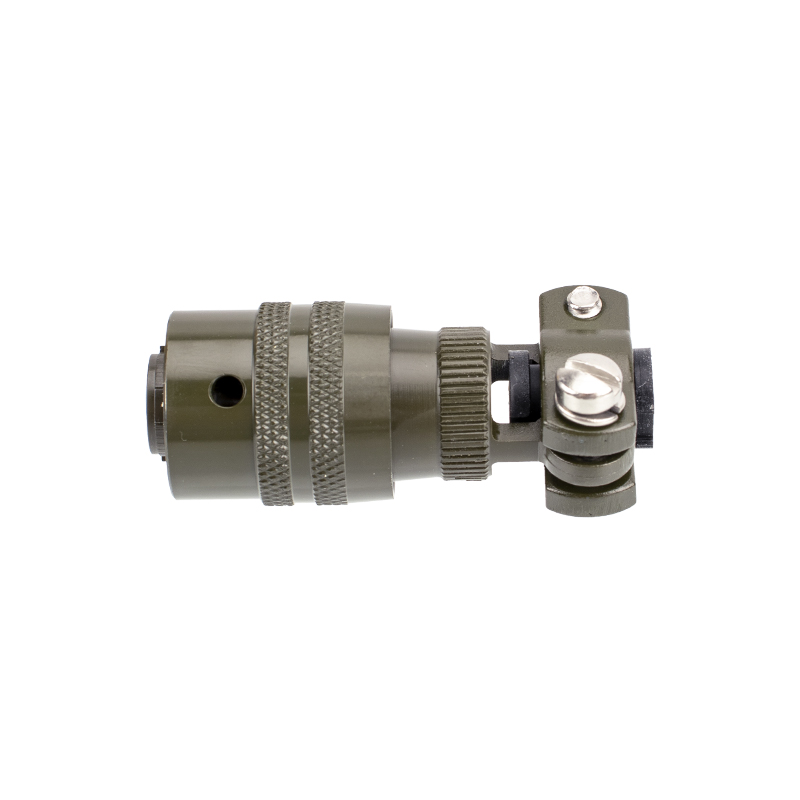

Home / Products / MIL Connector / 26482 / MS3116 / Shell size 8 housing, straight assembled hole type, F-tail attachment
MS3116
American standard connector: 26482 series MS3116
Structure type: Straight plug
Pin type: Female
Wiring method: Solder
Insertion method: Clip-on type
Number of cores: 2, 3, 4pin
Compliant with standard: MIL-DTL-26482
Product information
PRODUCT PARAMETERS
| Shell material： | Aluminum alloy |
| Shell finish： | Olive drab chromate coating over |
| Shell Alternative finish： | Black over zinc plating |
| Insulator and grommets： | Synethetic rubber |
| Contacts： | Copper alloy |
| Contacts finish： | Gold plate |
| Ambient temperature： | -55℃ ~ +125℃ |
| Mating cycles： | ≥500 Cycles |
| Water pressure： | 48 hours in 6 feet per MIL-DTL-26482 3.6.14 |
| Humidity： | 20-day 50 to 90% humidity teating per MIL-DTL-26482 3.6.25 |
| Salt spray： | Unmated connectors and protective covers meet 48 hour exposure per EIA364.26 and MIL-DTL-26482 3.6.19 |

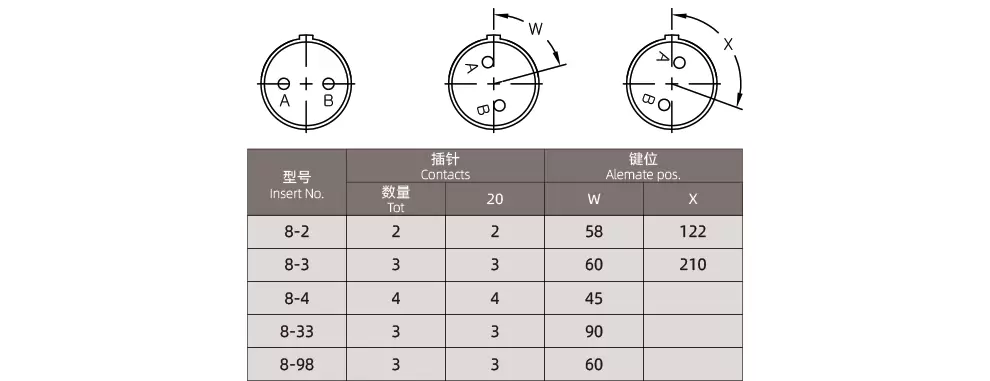

KEYMAP CHART

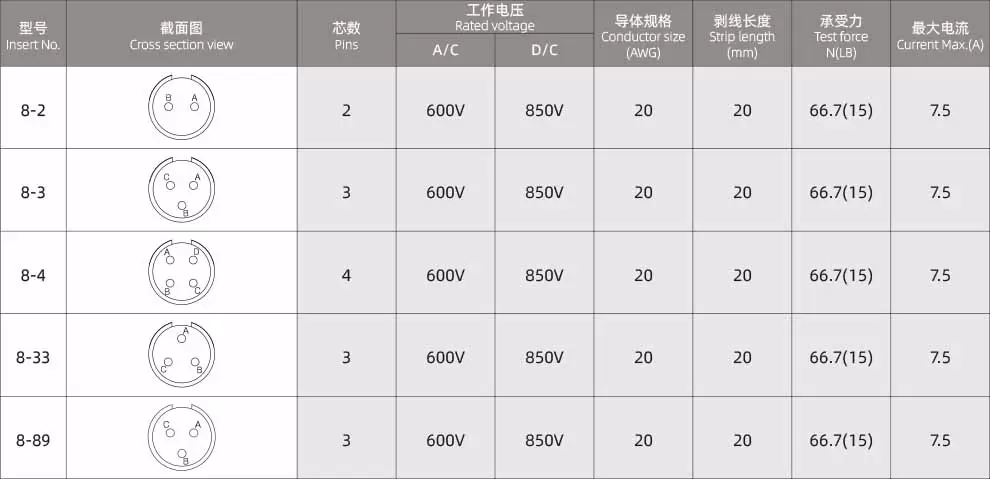

Electrical diagram

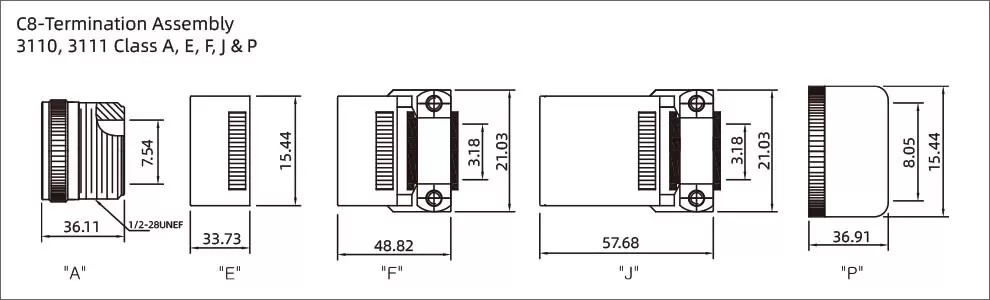

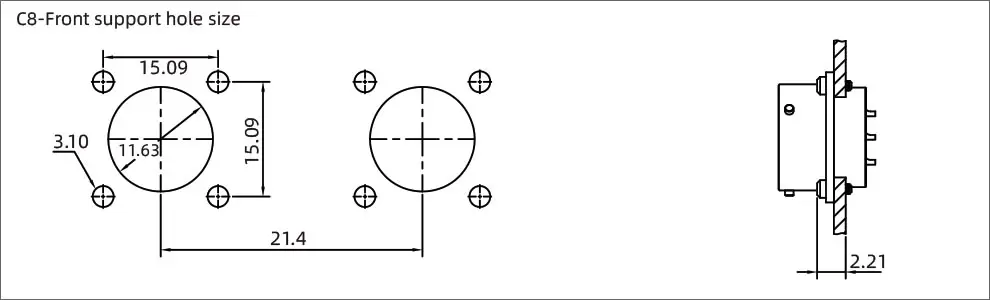

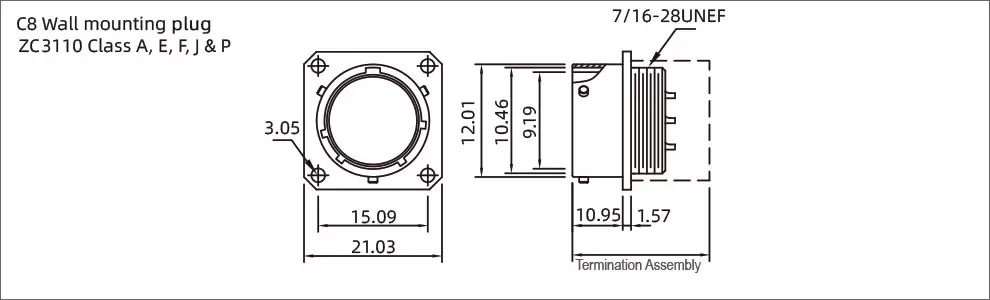

DIMENSION DRAWING
Product Ordering
| Product Name | Connector Type | Pins | 3D Download | 2D Download |
| 26482 Shell 8 Size Straight Female Plug | 8-2 | 2 | ||
| 26482 Shell 8 Size Straight Female Plug | 8-3 | 3 | ||
| 26482 Shell 8 Size Straight Female Plug | 8-33 | 3 | ||
| 26482 Shell 8 Size Straight Female Plug | 8-4 | 4 |
